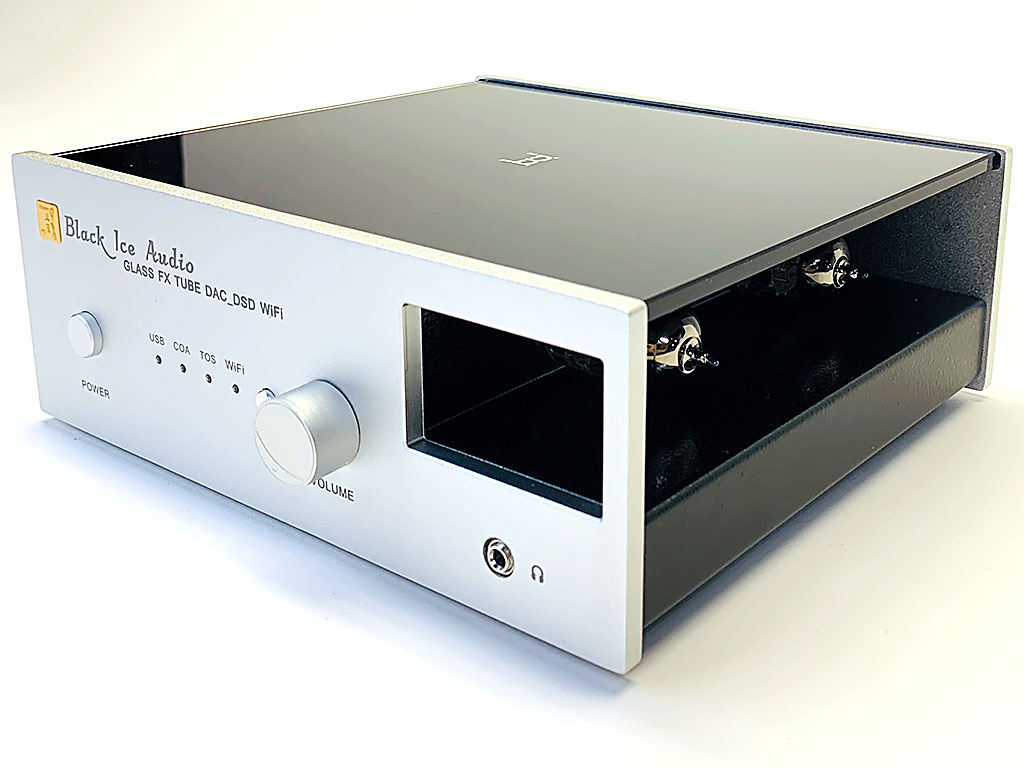

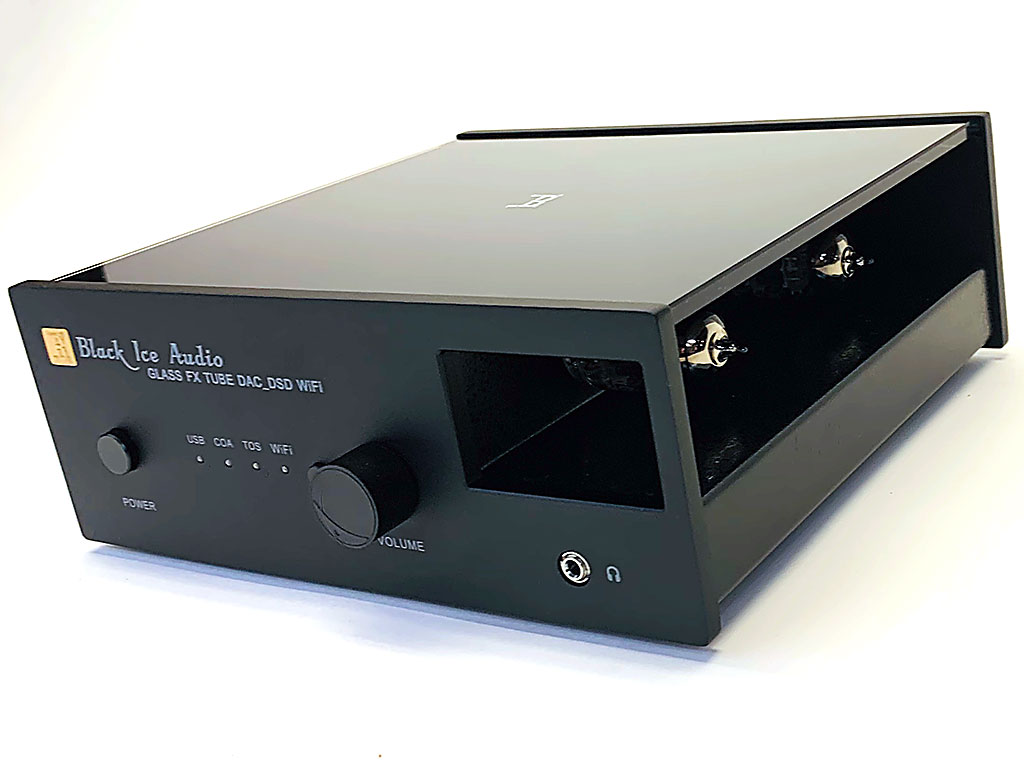

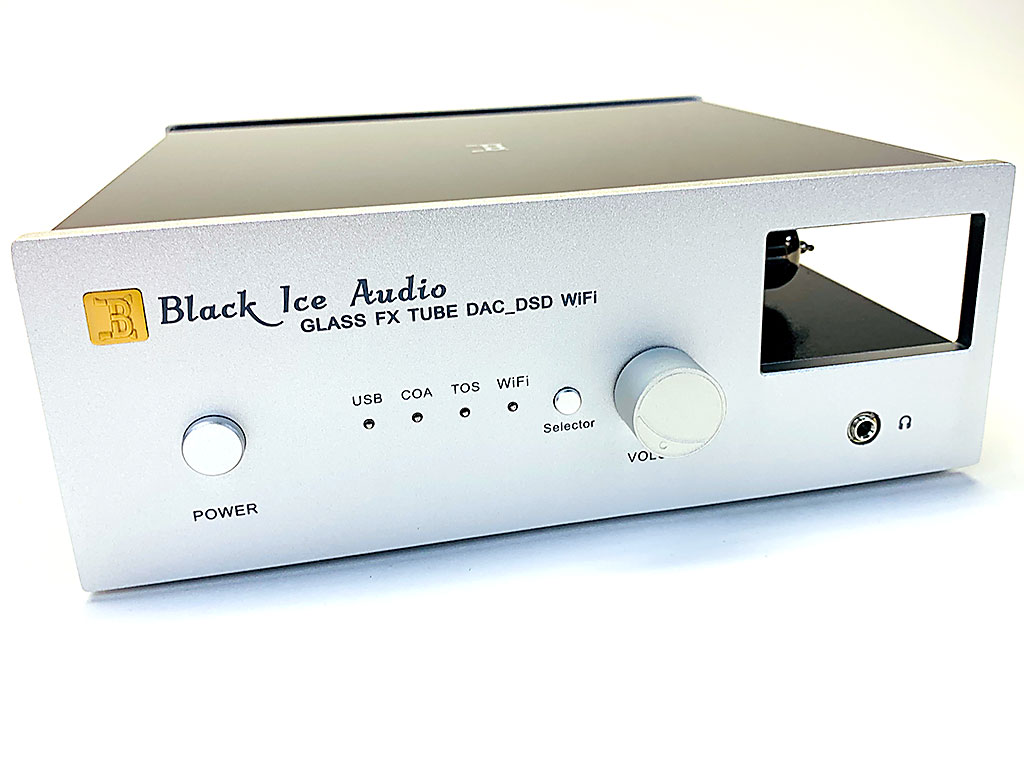

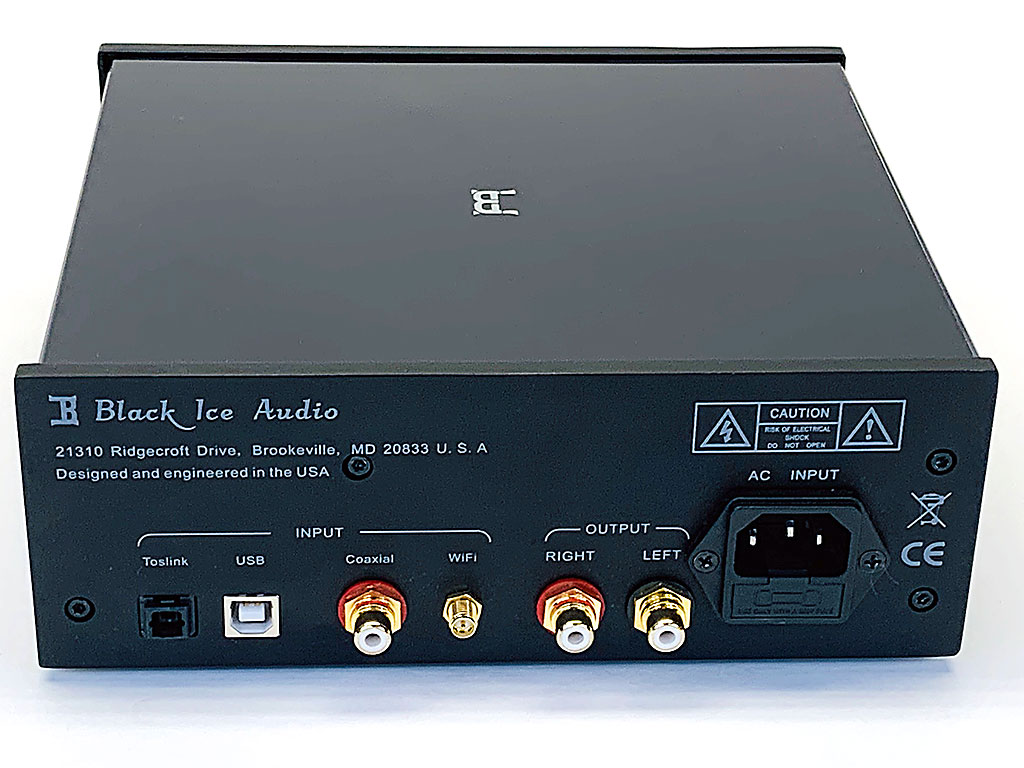

The Glass FX DAC DSD WiFi provides the natural organic analog sound for your digital setup.
An award winning Digital to Audio converter (DAC) with a heart of glass and no solid state op amps in the signal path.
We have taken our original Glass FX DAC to the logical conclusion of today’s technology, we have added a custom designed DSD board in which hi definition digital is clean, clear, rich, lush and smooth with the emotion of an analog presentation.
Lest we forget, you can add in pace and separation and a deep tight bass. With Wifi, your music is only a few clicks away from your smart phone, Television or computer. Brings new meaning to digital air play.
Construction Details & Features
- Chassis: Compact Design
- Amplification of Analog Signal: done exclusively via Vacuum tubes.
- Volume control: can be used as a passive preamplifier
- DAC Chip: PCM 1795 TI (Burr-Brown)
- DSD Chip: Savi Bravo SA9227
- WIFI: AirPlay Certified 32Bit/192kHz, DSD 64/128 /IEEE 802.11n 2.4GHz
Explore In-depth
Listener Notes
Advanced Engineering Notes
Upgrades Available
Testimonials
Awards & Reviews
| Output Level: | 0 V to 2.3V (±1dB, 47K ohms)(SIN SIGNAL 0dB SPDIF IN) |
| Frequency Response: | 20-20 KHz （±0.5dB |
| Bandwidth: | 10Hz to 70kHz + 1dB |
| Distortion THD: | Less than 0.01% (1kHz) |
| Dynamic Range: | 126 dB |
| Headphone Impedance: | 30 ohms |
| Output Impedance: | 1.25K @ 1KHz |
| SNR: | ＞90dB ( 20Hz-20kHz) |
| Tube Complement: | 2 pcs. 12AX7 |
| Power Requirements: | 110V-120 VAC 60Hz or 220-240 VAC 50Hz |
| Dimensions: | 8 inches wide by 7 inches deep by 3 inches high |
| Weight: | 6 pounds (2.72 Kg) net, approximately 8 pounds (3.62 Kg) packaged |
| Warranty: | 12 months limited parts and labor. Six months or 1000 hours whichever comes first. |
| Fuse: | 110 – 120 VAC, 1 Amp slo Blo; 200 – 240 VAC, .5 Amp slo Blo, Size 5mm X 20mm |
- FX DAC DSD WIFI
- 2 Output Tubes: 12AX7
- Power Cord, Antenna, and USB cable
- Manual and Warranty Info
